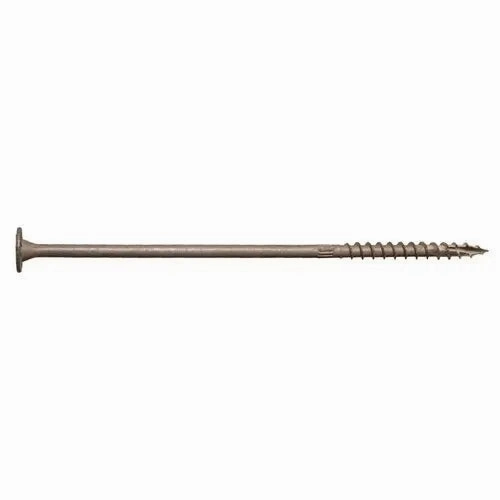

Simpson Strong-Tie SDWS22800DB-R50 8" x .220" Structural Wood Screw -Exterior 1 each

Designed to provide an easy-to-install, high-strength alternative to through-bolting and traditional lag screws. The Strong-Drive SDWS Timber screw is ideal for the contractor and do-it-yourselfer alike. It is code listed under IAPMO UES ER-192 and meets 2015 and 2018 IRC^® and IBC^® code requirements for several common wood framing applications.

Key Features

• SawTooth^™ point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
• Bold thread design provides superior holding power
• Underhead nibs offer greater control when seating the head
• Large low-profile washer head provides maximum bearing area (0.75" head dia.)
• Size identification on all SDWS screw heads
• 6-lobe T40 drive provides positive engagement that makes the screw easy to drive and improves bit life (replacement driver bit — BIT40T-134-RC)
• U.S. Patent 9,523,383

Double-barrier coating provides corrosion resistance equivalent to hot-dip galvanization, making it suitable for certain exterior and preservative-treated wood applications, as described in the evaluation report.

• Structural wood-to-wood and engineered-wood connections including ledgers

• Retail and mini-bulk packs include one 6-lobe, T40 driver bit; bulk packs include two driver bits

Specifications:
